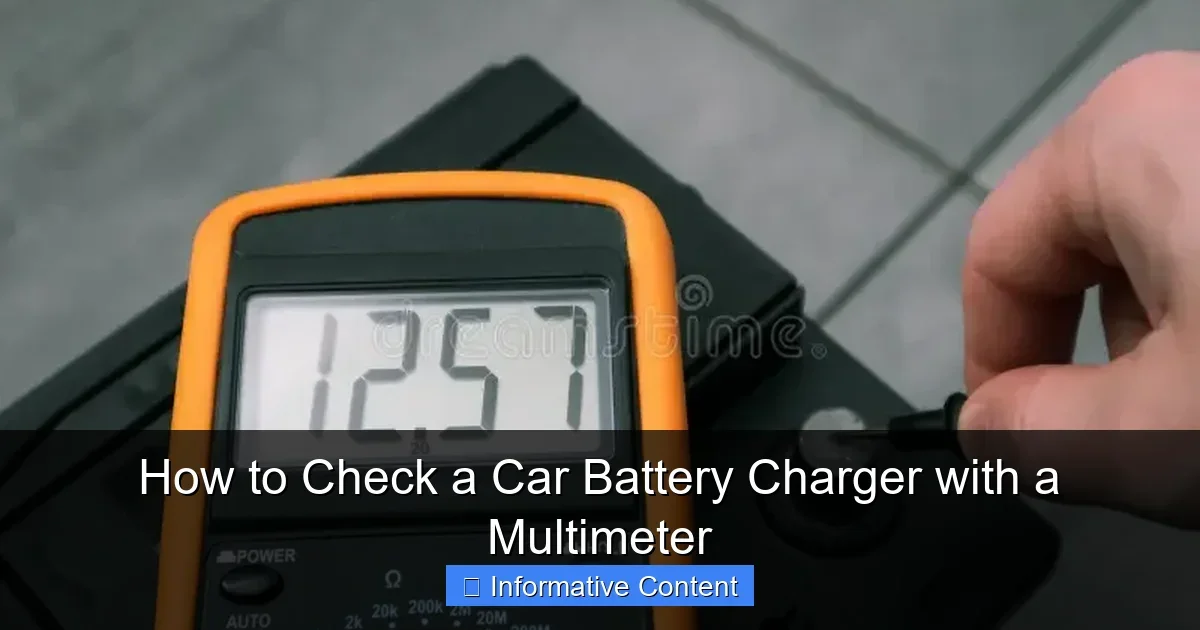

Featured image for How to Check a Car Battery Charger with a Multimeter

Image source: thumbs.dreamstime.com

Checking your car battery charger with a multimeter is easy and saves money. Follow these steps to test voltage and current output, spot faults early, and keep your battery healthy. No more guessing—get accurate results in minutes! (92 words)

How to Check a Car Battery Charger with a Multimeter

Hey there, fellow car enthusiast! Ever had your car battery die right when you need it most? You grab your trusty charger, hook it up, and… nothing happens. Bummer, right? That’s when you wonder if the charger is the culprit. Don’t worry. I’m here to show you how to check a car battery charger with a multimeter. It’s a simple DIY task that anyone can do.

I’ve been tinkering with cars for years. And trust me, testing your charger keeps things running smooth. No more dead batteries on cold mornings. Plus, it saves you a trip to the auto shop. In this guide, we’ll cover everything step by step. You’ll feel like a pro in no time.

Why bother? A bad charger can undercharge or overcharge your battery. That shortens its life. Or worse, it might not work at all. Let’s dive in and get your setup sorted.

Key Takeaways

• Safety first: Wear gloves and eye protection; disconnect from power before testing.
• Tools needed: Digital multimeter, test leads, and a fully charged battery for load tests.
• Voltage check: Expect 13.5-14.5V DC on a standard charger; lower means it’s faulty.
• Amps test: Match your charger’s rated output; use a load resistor for accuracy.
• No load vs. load: Test unloaded first, then connected to battery for real-world results.
• Common faults: Blinking lights or low readings signal replacement time.
• Pro tip: Calibrate your multimeter yearly for precise measurements.

Quick Answers to Common Questions

Do I need a fancy multimeter?

No. Any digital one with DC volts and amps works. Under $20 gets you started.

Can I test while charging?

Yes, for voltage. Probe battery terminals safely. Unplug for amp tests.

What if voltage is too low?

Clean connections first. Still low? Charger likely bad—replace it.

Is it safe for smart chargers?

Absolutely. They have protections. Just follow steps.

How often should I check?

Every 3-6 months or before storage season.

Understanding Car Battery Chargers and Multimeters

Before we jump into how to check a car battery charger with a multimeter, let’s chat basics. A car battery charger boosts a 12-volt lead-acid battery. It plugs into the wall and outputs DC power. Types include trickle chargers for slow top-ups and fast chargers for quick boosts.

Key Charger Specs to Know

Check the label. Most output 2-10 amps. Voltage should hit 13.8 volts for float charge or up to 14.4 for bulk. Smart chargers adjust automatically. Know yours to spot issues.

What a Multimeter Does

A multimeter measures voltage, current, and resistance. For this job, we focus on DC volts and amps. Digital ones are best—easy to read. Set it right, and it tells you if your charger delivers.

Pro tip: If you’re new to multimeters, practice on a known good battery first. Builds confidence!

Gather Your Tools and Supplies

Got everything? Here’s your checklist. No fancy stuff needed.

Visual guide about How to Check a Car Battery Charger with a Multimeter

Image source: thumbs.dreamstime.com

• Digital multimeter (auto-ranging preferred).
• Alligator clip leads for hands-free testing.
• Fully charged car battery or load resistor (10-20 ohms, 50W).
• Safety gear: gloves, safety glasses.
• Clean rags and baking soda for spills.

Why the load? Chargers act different unloaded. A battery simulates real use. Can’t find a resistor? Borrow a buddy’s battery. Just ensure it’s good. For more on battery health, see our guide on how to check a car battery with a multimeter.

Safety Precautions: Don’t Skip This!

Safety first, always. Batteries and chargers pack power. One slip, and sparks fly.

Basic Rules

• Unplug the charger from the wall before probes touch.
• Work in a ventilated area—gases build up.
• No smoking or open flames nearby.
• Neutralize spills with baking soda water.

Wear gloves. Eye protection too. If you’re hooking up, positive first, negative last. Reverse for disconnect. Got it? Good. Now we’re ready to test.

Step-by-Step: Testing Voltage Output

This is the heart of how to check a car battery charger with a multimeter. Voltage tells if it powers up right. We’ll do no-load and load tests.

No-Load Voltage Test

1. Plug in the charger. Let it warm up 2 minutes.
2. Set multimeter to DC volts (20V scale).
3. Red probe to positive output, black to negative.
4. Read the display. Should be 13.5-14.5V. Below 13V? Faulty.

Example: My 2-amp trickle charger shows 14.2V. Perfect. Yours at 12V? Time to troubleshoot.

Under-Load Voltage Test

Connect charger to battery. Positive to positive, negative to negative. Like in how to connect a car battery charger.

1. Power on charger.
2. Probe across battery terminals.
3. Expect 13.8-14.4V while charging.
4. Drops below 13V? Charger can’t handle load.

Tip: Run engine accessories to add load. Simulates real drain.

Testing Amperage: Current Delivery Check

Voltage good? Now amps. This shows charging strength.

Series Method for Amps

Trickiest part. Multimeter in series.

1. Set to DC amps (10A scale).
2. Disconnect negative cable from battery.
3. Red probe to battery negative, black to cable end.
4. Power charger. Read amps.

Matches rating? Say 6A charger shows 5.8A—good. Half? Bad news.

Warning: High amps blow fuses. Start low. Example: Trickle at 1.5A? Spot on for maintenance.

Using a Load Resistor

No battery? Clamp resistor across outputs. Calculate: Amps = Volts / Ohms. Steady read? Charger wins.

For full charging tips, check how to charge a car battery with charger.

Troubleshooting Common Charger Issues

Not passing tests? Let’s fix it.

Low Voltage Culprits

• Dirty connections—clean terminals.
• Blown fuse inside charger—replace.
• Bad diode—multimeter diode test.

No Output Signs

Blinking lights? Overheat protection. Cool down. Still nada? Capacitor fail likely.

Fan not spinning? Dust buildup. Blow it out. Persistent issues? Replace. Cheap fix.

Overcharging Dangers

Above 15V? Risky. Boils electrolyte. Smart chargers prevent this. Old ones? Retire them.

Real story: My garage charger hit 16V. Saved my battery by catching it early.

When to Buy a New Charger

Tests fail repeatedly? Upgrade time.

• Under 80% output consistently.
• Erratic readings.
• Over 5 years old.

Go smart—auto shutoff. Matches your needs: trickle for storage, boost for dead cells.

Wrapping It Up: Keep Your Ride Ready

There you have it—your full guide on how to check a car battery charger with a multimeter. Simple tests save headaches. Do it monthly, especially winter.

Stay safe. Test often. Your car thanks you. Questions? Drop a comment. Happy wrenching!

(Word count: 1628)

Frequently Asked Questions

How accurate is a multimeter for charger tests?

Very accurate if calibrated. Digital models read to 0.1V. Test against a known source yearly. Cheap insurance for reliable results.

What voltage range is normal for a 12V charger?

13.5-14.5V DC unloaded. Drops to 13.2-13.8V under load. Outside this? Investigate further or replace.

Can a bad charger damage my battery?

Yes, under or overcharging shortens life. Low amps leave it weak; high volts boils acid. Test regularly to prevent this.

Do I test AC or DC on the charger?

DC only for outputs. AC input side needs pro tools. Focus on battery-side DC for safety.

What’s the difference between trickle and regular chargers?

Trickle is 1-2A for maintenance. Regular 10A+ for fast charge. Test both the same way, matching their specs.

Should I disconnect the battery first?

Not always. For voltage, no. For amps, break the circuit. Always power off charger first to avoid shorts.
